15 September 2019
User Interface: thoughts
Support Prop structures: Models

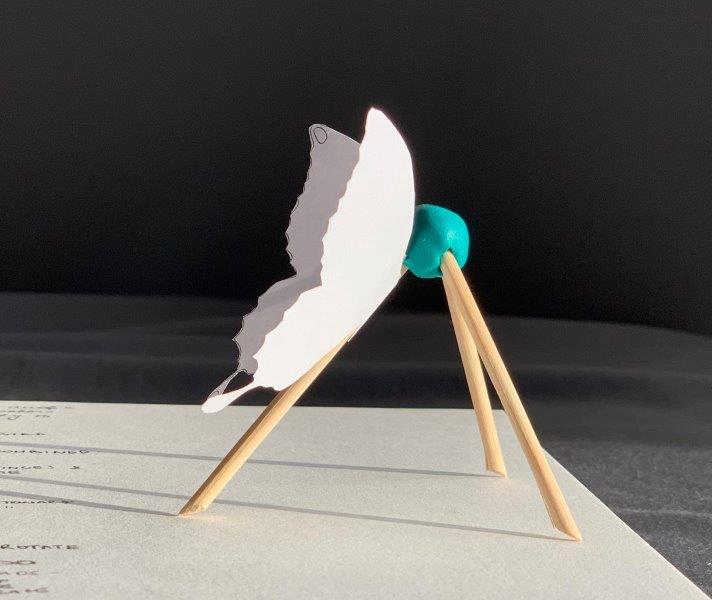

Tripod at base

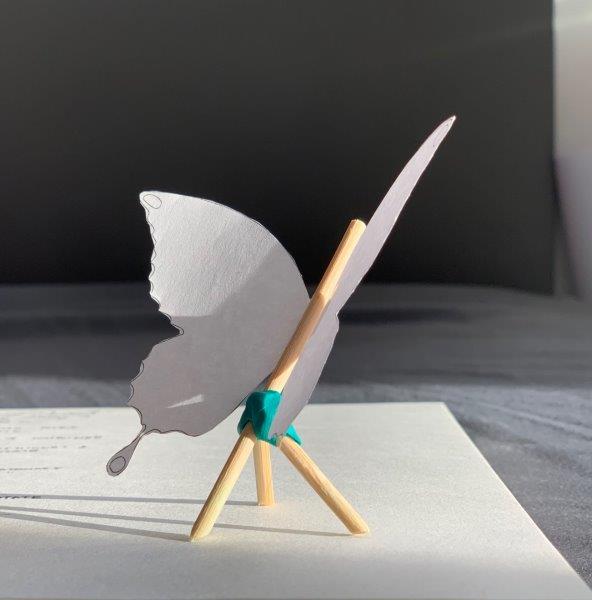

Tripod at top
Aesthetics: Precedent – Bristol Whales Sculpture
Flapping and constraint mechanism: Reading – Making Simple Automata, Robert Race

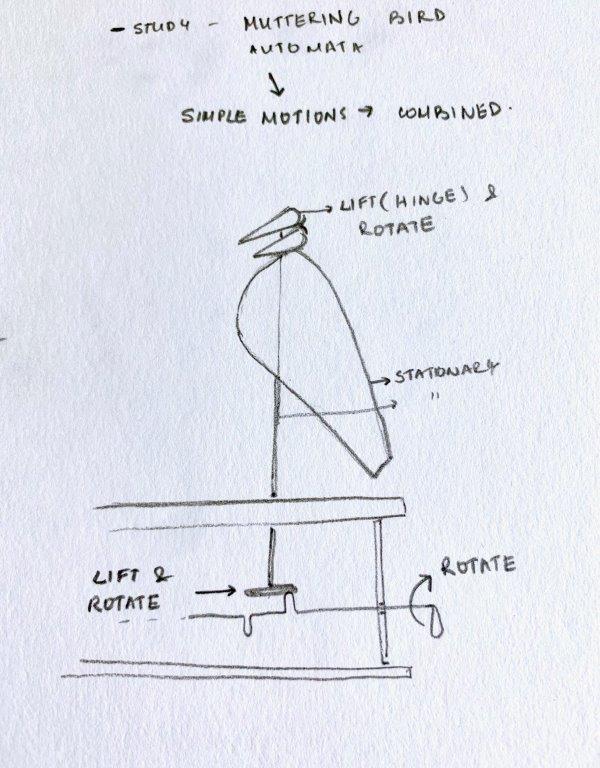

Muttering Bird – Mechanics study

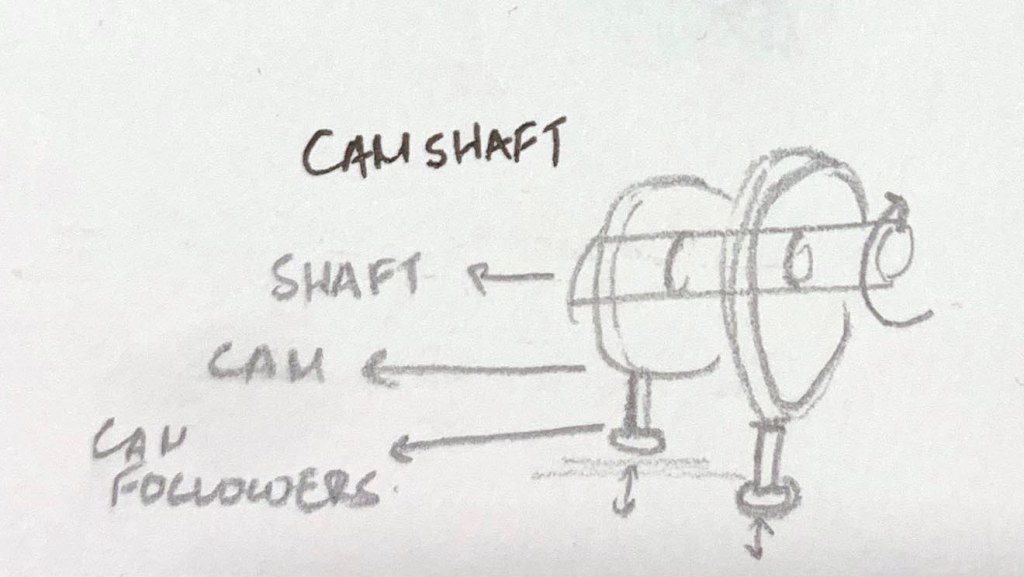

Camshaft

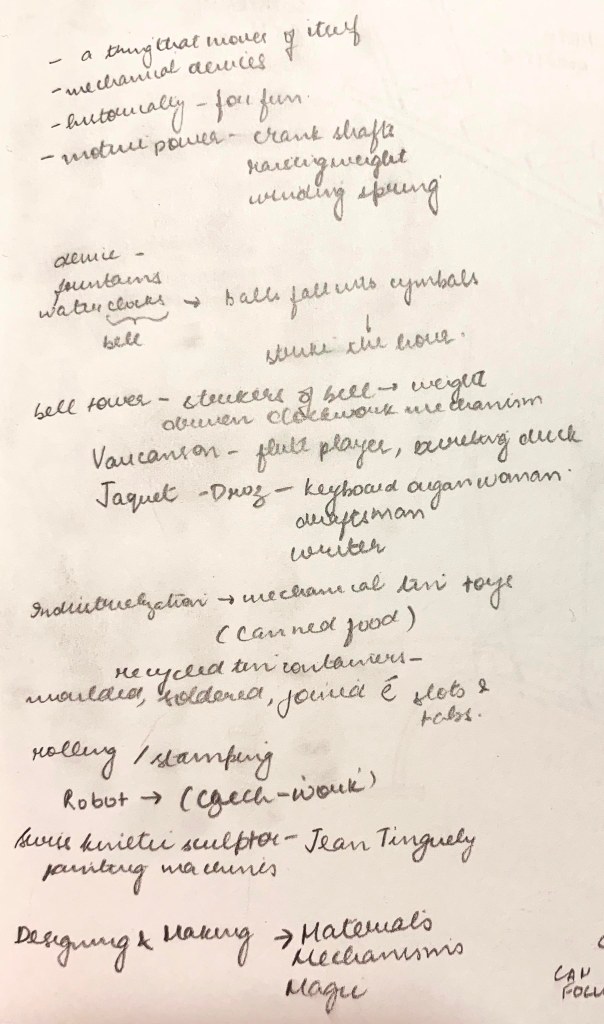

Historical precedents of ‘Automata’
Quote – Basics of interactive objects

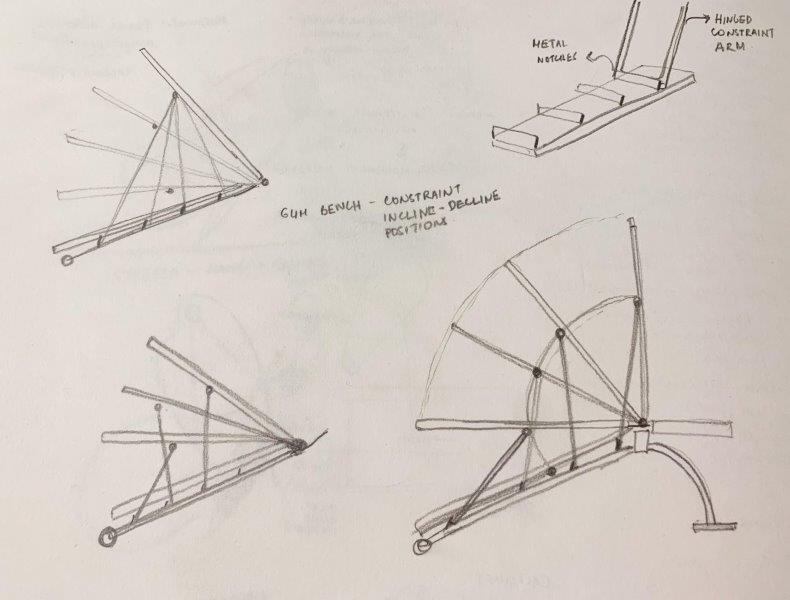

Everyday example: Gym Bench
#1 Hanging hinged constraint arm
#2 Knob, Semicircular belt with holes

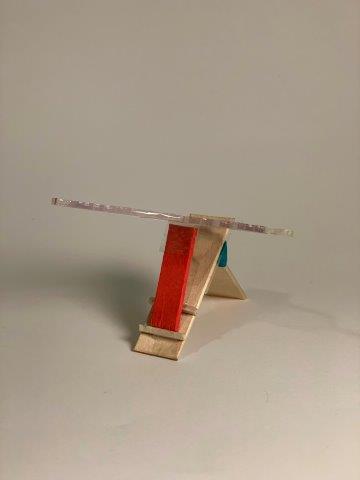

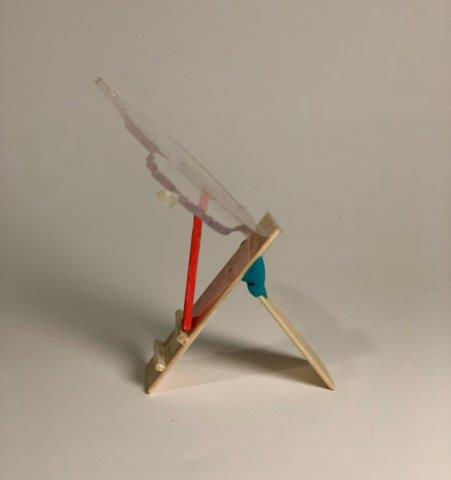

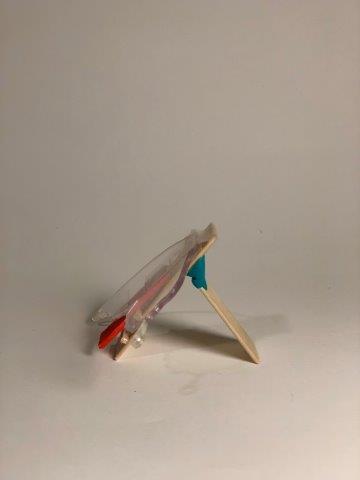

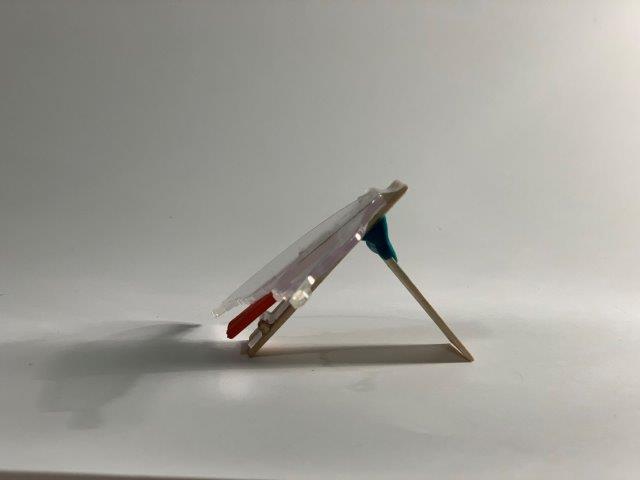

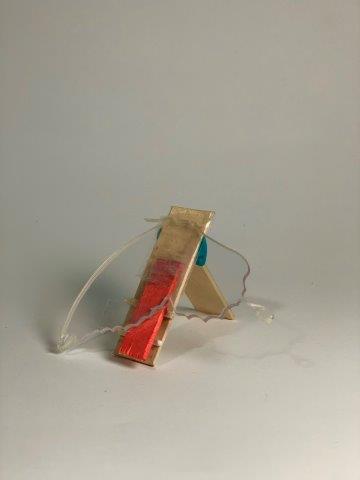

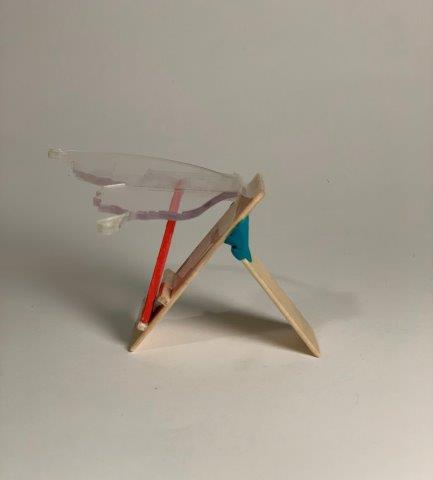

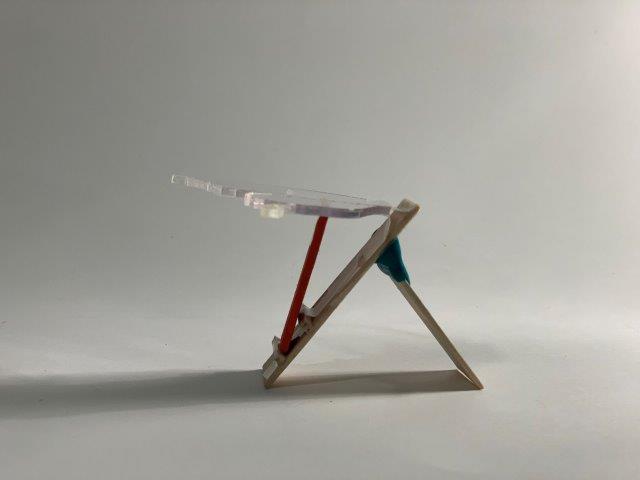

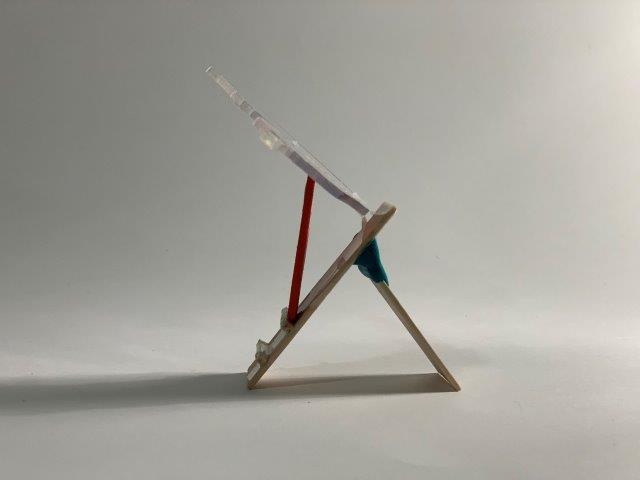

Study Model:
Analysis:
The system of notches holding the hanging hinged constraint arm (like the Gym bench #1) works well to allow the 3 desired positions for the butterfly wings. The notches also look like an exciting climbing ladder for kids. However, the rigid hanging constraint arm might prove a safety issue for the scale of the installation.
